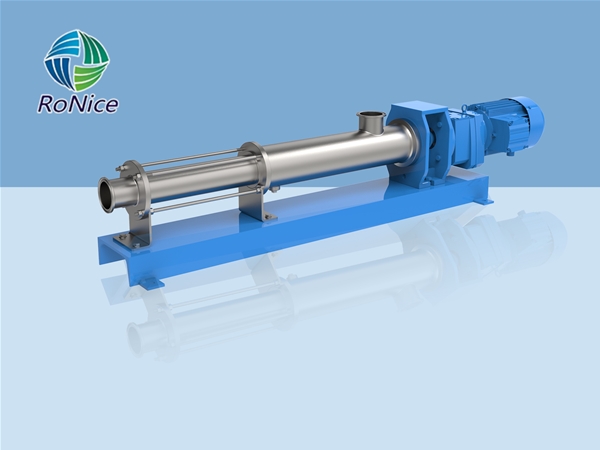

RWS New Energy Single Screw Pump

  • Type:Screw pump series
  • Code:
  • food hygiene pump, used in food industry, pharmaceutical industry, skin care industry and other fields, the pump body is made of stainless steel, internal cleaning requirements, the flow part needs to be smooth treatment, and the import and export need to reserve independent high-pressure cleaning port, easy to maintain. Material conveying is smooth, no shear, no pulsation, and can be quantitatively transported. Seals are generally food grade, to avoid black debris, sand, etc., open universal-joint components and special connection structures. The connection method of inlet and outlet needs to be quick and easy to disassemble, and conform to the international, German and American standards of the industry, so as to facilitate the import and export of equipment with OEM customers.
  • Product Description

Advantages of screw pump:

1. It  can transport  high  viscosity  medium.Depending  on  the size of  the pump,the  viscosity  of  the  medium is  in  the  range of  0 centipoise(CPS)  to 300,000 centipoise(CPS).

2. It can transport solid  particles,grinding  particles and fibers.The content can  be  up  to  40%  of  the  medium  ingeneral.  When the solid  in  the  medium  is  powdery fine  particles,the  maximum  content  can  be  as  high as 70%.According    to the size of the pump,the maximum particle size of the solid contained in the medium is 2mm-40mm.

3. The  output  liquid  is  continuous  and  even  with  stable  pressureand  small  agitation.Therefore ,the  composition  of  the  sensitive  liquid  will  not  change.

4. Flow rate is directly proportional to speed.The flow can be adjusted by changing the speed.Coupled witha variable   speed motor,the pump canbecome a variable pump,whichis very flexible.It can also achieve constant flow control    through  PLC  control.

5. The  pressure  can  be  automatically  adjusted  with  the  resistance   of  the  output  pipeline. Between  0-48(kg/cm2)   pressure,the  user  can  easily  adjust  to  the  required  pressure.In  this  way, it  can  not  only  save  energy,but also avoid the influence to the process  fow because of   too  high  or  too  low  pressure. Meanwhile it works better through  PLC  control  to  achieve  constant  pressure  transmission.

6. Simple  structure,less  wear,and  easy  maintenance.

Compared with other types of pumps:

1. Compared  with  the  centrifugal  pump,the  single  screw  pump  does  not  need  to install  alves.It  own  can  forma  closed cavity to  prevent  backflow  buffer,and  the  flow  is  stable  and  linear,without  large   fluctuations.

2. Compared  with the  plunger  pump,the  single  screw  pump  has  a  better  self-priming  capacity.According to the  size of  the pump,it can suck up to a height of about 8 meters of water column.

3. Compared with the diaphragm pump,the single screw pump can transport a variety of mixed impurities,and realize  the  mixed  transport  of  gas,liquid  and  solid,and  can  also  transport  the  medium  containing  solid  particles  or  fibers and a variety of chemical corrosive substances.

4. Different  from   plunger  pump,rotor  pump,diaphragm  pump  and  gear   pump,single  screw   pump  can   be  used  for  pharmaceutical filling and metering,and its metering accuracy is far higher than other pumps.



RW food hygiene pump:

  1. Mainly used in the field of new energy, the pump body is made of sanitary grade stainless steel material, with internal mirror treatment and clean cleaning. It can be designed with online cleaning and steam disinfection capabilities, and can also be used as a long-term insulation structure.
  2. It can be used for quantitative conveying with a constant pressure device, ensuring smooth material conveying without shear or pulsation.
  3. Disturbance connecting rod structure, anti pollution, sterile pump structure with long service life.
  4. The import and export connection method should be quick to install and easy to disassemble, and comply with industry standards such as national, German, and American, to facilitate the import and export of OEM customer equipment.
  5. Flow range: 0.1-100m ³/ H.
  6. Pressure range: 0-4.8Mpa or higher.

 Get to know Ronice:

screw pump/screw valve/micro dispensing screw pump
